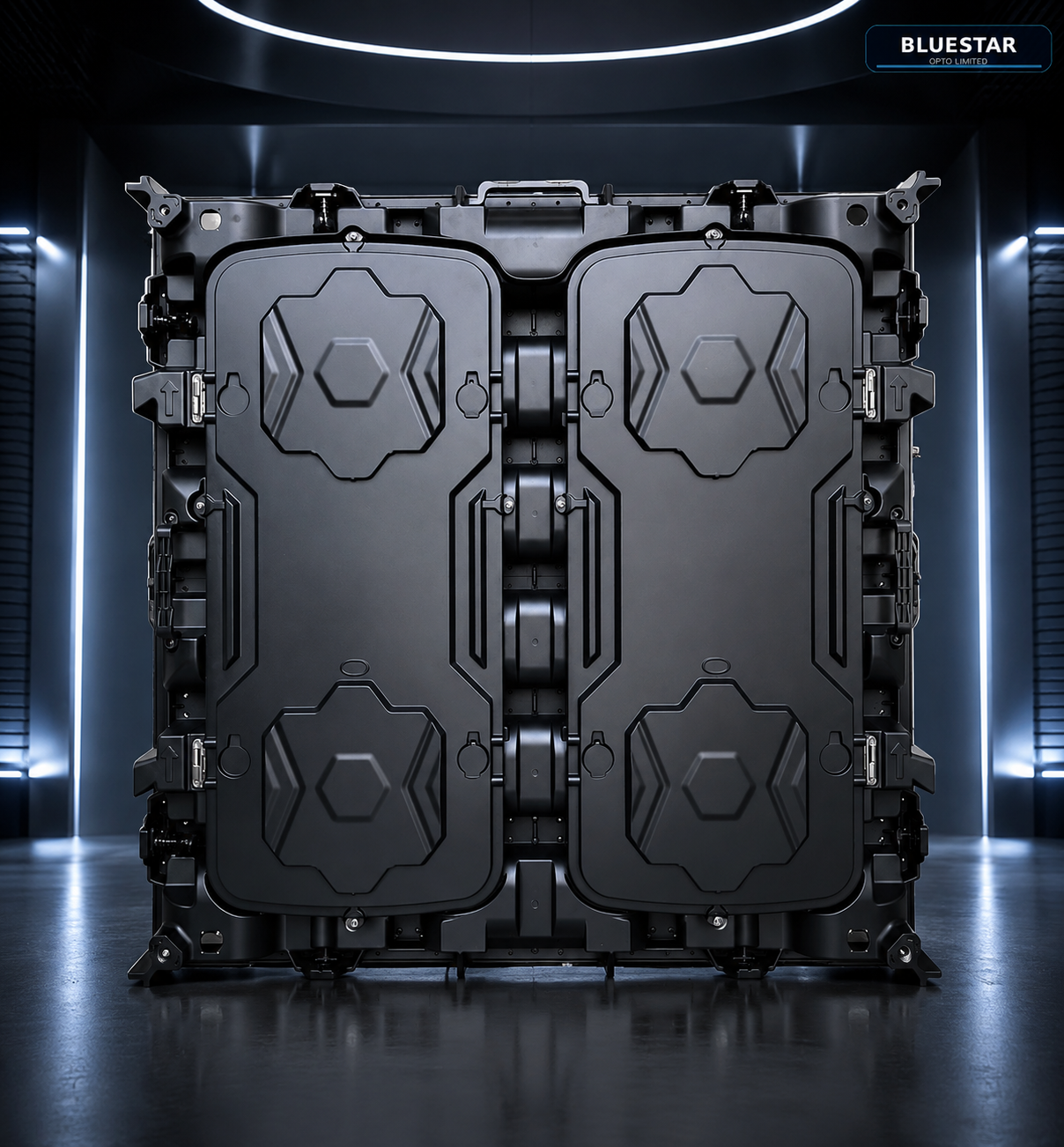

P5 960x960mm Outdoor
Outdoor LED Display
Best for: Roadside advertising, façades, commercial plazas
P5 960X960mm high-brightness outdoor LED billboard for roadside advertising, building façades and commercial plazas where long viewing distance and budget control matter.
Key Attributes
Pixel Pitch: 5mmBrightness: ≥5000CD/m2Refresh Rate: ≥7680HzCabinet Size: 960mm×960mmIP Rating: IP65 for outdoor useMOQ: 6 m²
PriceContact for price →
- Export packing · shipping quoted per order
- Remote technical support included
- CE, RoHS and FCC documents per project requirements
Supplier
Bluestar Opto Limited · Factory exporter · Shenzhen, China
OEM/ODM · custom cabinet sizes
Full Specifications
| LED SPECIFICATIONS | |
|---|---|
| Color composition - Red | Supplier: HongSheng; Wavelength: 625nm; Viewing angle: 140°/140°; Place of origin: China |
| Color composition - Green | Wavelength: 520nm; Place of origin: China |
| Color composition - Blue | Wavelength: 467nm; Place of origin: China |
| CABINET SPECIFICATIONS | |
| Model | P5 |
| Pixel Pitch | 5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1921 |
| Module Size | 320mm×160mm |
| Module Resolution | 64 pixels x 32 pixels |
| Cabinet Resolution | 192 pixels x 192 pixels |
| Cabinet Size | 960mm×960mm |
| Cabinet Thickness | 80mm |
| Cabinet Material | Die-cast aluminum |
| Pixel Density | 40000 dots/sqm |
| Brightness | ≥5000CD/m2 |
| Scan Method | 1/8 |
| Optimal Viewing Distance | 15m~5m |
| Maximum Power Consumption | 850W/sqm |
| Average Power Consumption | 350W/sqm |
| Cabinet Weight | 28 kgs |
| Gray Scale | 16 bit |
| Colors | 2.8 trillion |
| Driver IC | FM6373 |
| Refresh Rate | ≥7680Hz |
| Viewing angle | 140°/140° |
| Color Temperature | 6,500K |
| Frame Frequency | ≥60Hz |
| Out-of-control Pixel Rate | <1/10000 |
| MTBF | >5000 hours |
| Life Span | 100,000 hours |
| Control Mode | Synchronous display controlled by PC via DVI |
| Working Voltage | AC 100/240v 50-60Hz |
| Control Distance | Ethernet cable: 100m, multimode optical fiber: 500m, single-mode optical fiber: 20km |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10% to 80% |
| IP Rating | IP65 for outdoor use |
