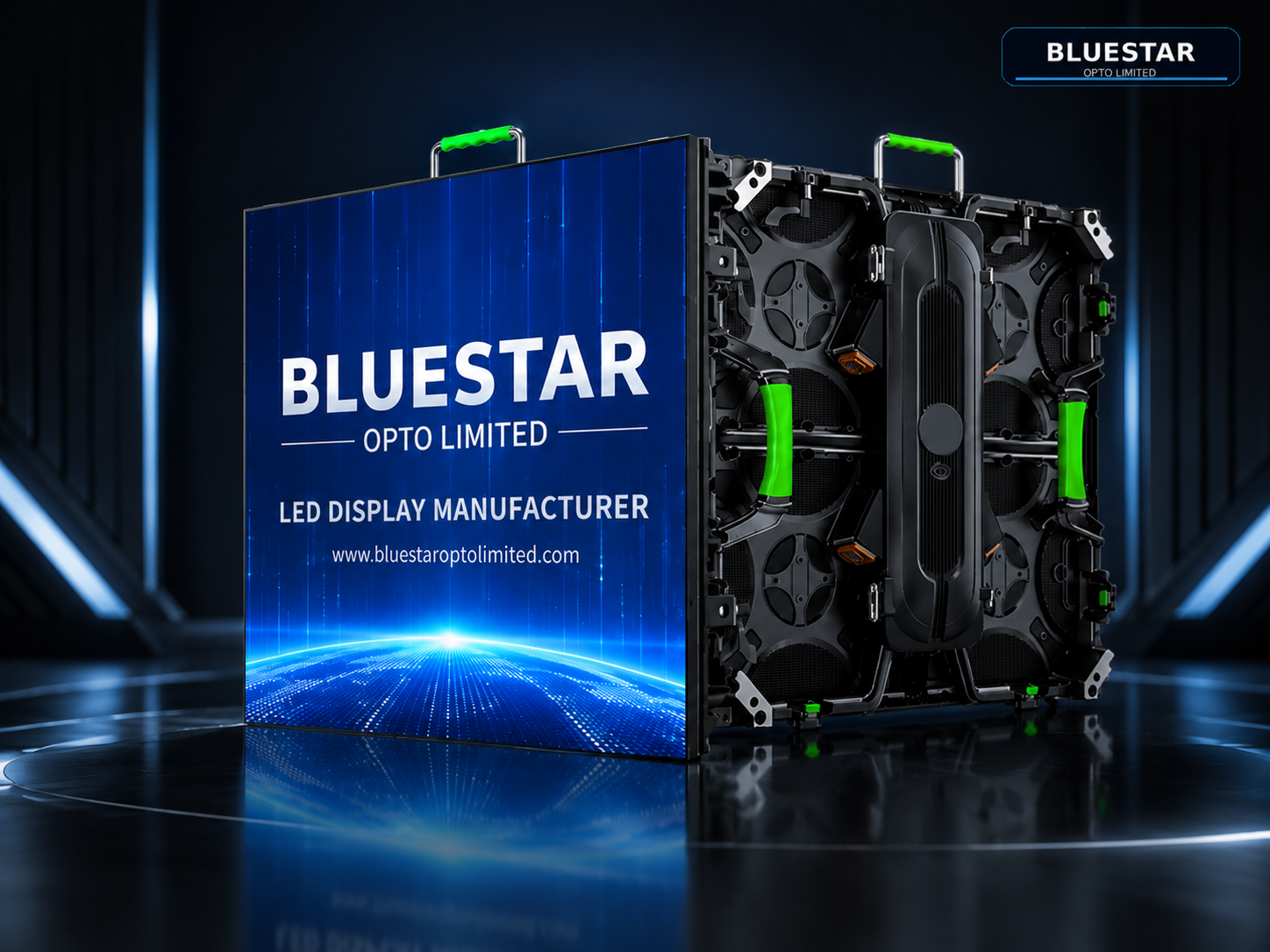

P2.9 500X500mm Indoor
Indoor LED Display
Best for: Shopping malls, brand displays, meeting rooms
P2.9 500X500mm indoor LED video wall offering a good balance of clarity and cost for shopping malls, brand displays, meeting rooms and commercial interiors.
Key Attributes
Pixel Pitch: 2.976mmBrightness: ≥1000CD/m2Refresh Rate: ≥7680HzCabinet Size: 500mm×500mmIP Rating: IP45 for indoor useMOQ: 6 m²
PriceContact for price →
- Export packing · shipping quoted per order
- Remote technical support included
- CE, RoHS and FCC documents per project requirements
Supplier
Bluestar Opto Limited · Factory exporter · Shenzhen, China
OEM/ODM · custom cabinet sizes
Full Specifications
| LED SPECIFICATIONS | |
|---|---|
| Color composition - Red | Supplier: HongSheng; Wavelength: 625nm; Viewing angle: 140°/140°; Place of origin: China |
| Color composition - Green | Wavelength: 520nm; Place of origin: China |
| Color composition - Blue | Wavelength: 467nm; Place of origin: China |
| CABINET SPECIFICATIONS | |
| Model | P2.976 |
| Pixel Pitch | 2.976mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1515 |
| Module Size | 250mm×250mm |
| Module Resolution | 84 pixels x 84 pixels |
| Cabinet Resolution | 168 pixels x 168 pixels |
| Cabinet Size | 500mm×500mm |
| Cabinet Thickness | 80mm |
| Cabinet Material | Die-cast aluminum |
| Pixel Density | 112896 dots/sqm |
| Brightness | ≥1000CD/m2 |
| Scan Method | 1/28 |
| Optimal Viewing Distance | 2.9 m~ 9 m |
| Maximum Power Consumption | 850W/sqm |
| Average Power Consumption | 350W/sqm |
| Cabinet Weight | 7.5 kgs |
| Gray Scale | 16 bit |
| Colors | 2.8 trillion |
| Driver IC | FM6373 |
| Refresh Rate | ≥7680Hz |
| Viewing angle | 140°/140° |
| Color Temperature | 6,500K |
| Frame Frequency | ≥60Hz |
| Out-of-control Pixel Rate | <1/10000 |
| MTBF | >5000 hours |
| Life Span | 100,000 hours |
| Control Mode | Synchronous display controlled by PC via DVI |
| Working Voltage | AC 100/240v 50-60Hz |
| Control Distance | Ethernet cable: 100m, multimode optical fiber: 500m, single-mode optical fiber: 20km |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10% to 80% |
| IP Rating | IP45 for indoor use |
