P2.5 640X1920mm Indoor LED Poster
P2.5 indoor LED poster (vertical advertising screen) in the standard 640×1920mm format, with standalone USB / wireless mobile playback and multi-screen cascading; size, brightness and playback system can be customized to client requirements.
- Export packing · shipping quoted per order
- Remote technical support included
- CE, RoHS and FCC documents per project requirements
Supplier
Bluestar Opto Limited · Factory exporter · Shenzhen, China
OEM/ODM · custom cabinet sizes
Full Specifications
| LED SPECIFICATIONS | |
|---|---|
| Color composition - Red | Supplier: HongSheng; Wavelength: 625nm; Viewing angle: 140°/140°; Place of origin: China |
| Color composition - Green | Wavelength: 520nm; Place of origin: China |
| Color composition - Blue | Wavelength: 467nm; Place of origin: China |
| CABINET SPECIFICATIONS | |
| Model | P2.5 |
| Pixel Pitch | 2.5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1515 |
| Module Size | 320mm×160mm |
| Module Resolution | 128 pixels x 64 pixels |
| Cabinet Resolution | 256 pixels x 768 pixels |
| Cabinet Size | 640mm×1920mm |
| Cabinet Thickness | 80mm |
| Cabinet Material | Die-cast aluminum |
| Pixel Density | 160,000 dots/sqm |
| Brightness | ≥1000CD/m² |
| Scan Method | 1/32 |
| Optimal Viewing Distance | 2.5m – 8m |
| Maximum Power Consumption | 850W/sqm |
| Average Power Consumption | 350W/sqm |
| Cabinet Weight | 32 kgs |
| Gray Scale | 16 bit |
| Colors | 2.8 trillion |
| Driver IC | FM6373 |
| Refresh Rate | ≥7680Hz |
| Viewing angle | 140°/140° |
| Color Temperature | 6,500K |
| Frame Frequency | ≥60Hz |
| Out-of-control Pixel Rate | <1/10000 |
| MTBF | >5000 hours |
| Life Span | 100,000 hours |
| Control Mode | Synchronous display controlled by PC via DVI |
| Working Voltage | AC 100/240v 50-60Hz |
| Control Distance | Ethernet cable: 100m, multimode optical fiber: 500m, single-mode optical fiber: 20km |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10% to 80% |
| IP Rating | IP45 for indoor use |
Product Description

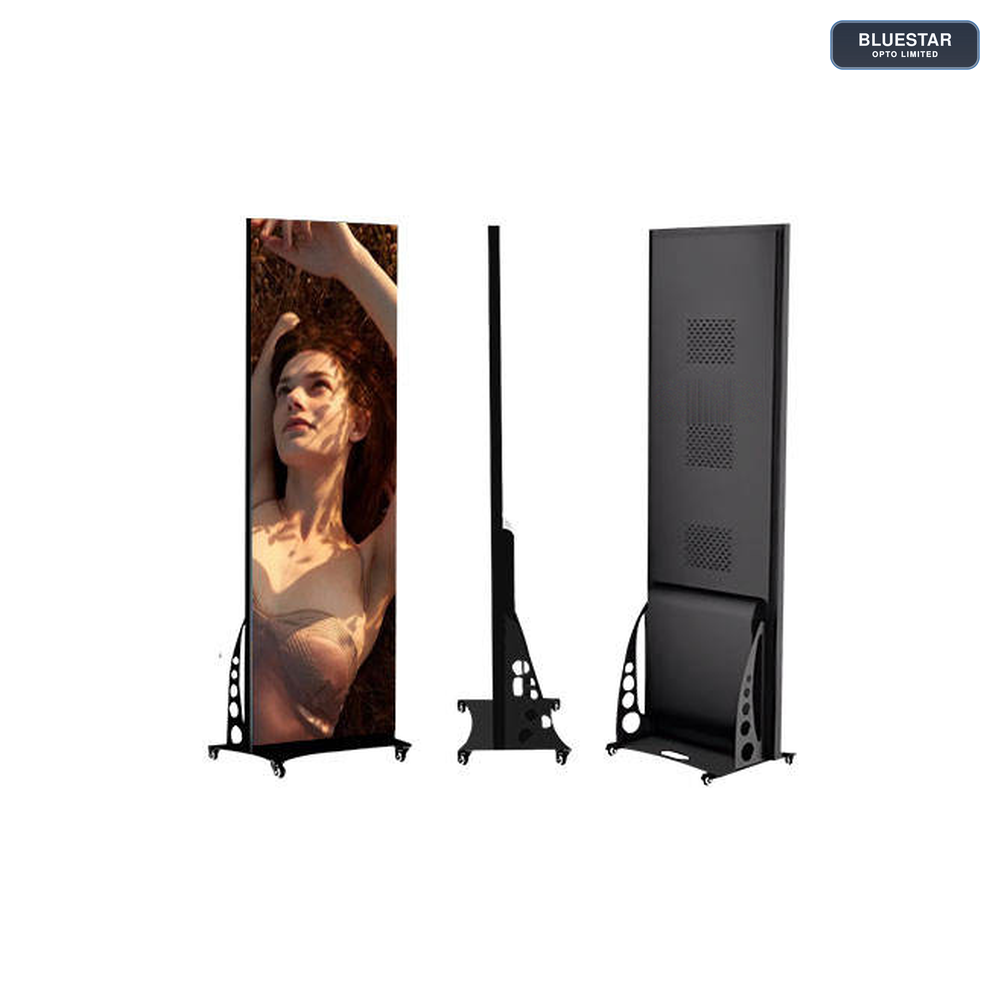

The P2.5 640X1920mm Indoor LED Poster is a freestanding vertical LED advertising screen in the standard 640×1920mm format — a plug-and-play digital poster for retail and commercial spaces. The 32 kg die-cast aluminum cabinet stands on a wheeled base, so one person can move it, set it up and start playing content in minutes, with no wall mounting or steel structure required.
With a 2.5mm pixel pitch, SMD1515 LEDs, ≥1000CD/m² brightness and ≥7680Hz refresh rate, the screen delivers sharp, vivid, flicker-free images at an optimal viewing distance of 2.5m – 8m — crisp even when shoppers stand right in front of it. Content plays standalone via USB or wirelessly from a mobile phone, and multiple posters can be cascaded into a wider video wall.
Key Features
- Standard 640×1920mm vertical format — eye-level digital poster sized for storefronts and lobbies
- P2.5 pixel pitch with SMD1515 LEDs — sharp detail for close viewing (2.5m – 8m)
- ≥1000CD/m² brightness — vivid and readable in bright indoor lighting
- ≥7680Hz high refresh rate — flicker-free on camera for photos and short videos
- Standalone playback — USB plug-and-play or wireless control from a mobile phone, no PC needed
- Multi-screen cascade — link several posters into one wider display
- Wheeled base, only 32 kg — one person can move and reposition it freely
- 1/32 scan with 16-bit grayscale — smooth gradients and natural skin tones
- 140°/140° wide viewing angle — clear picture from the side as well as head-on
- 100,000-hour LED lifespan; every unit aged, calibrated and inspected before export packing
Applications
Retail stores and storefronts · shopping malls and atriums · brand showrooms and pop-up stores · exhibitions and trade fairs · hotel lobbies and restaurants · airports and transport hubs · digital signage and in-store promotions
Installation & Service
Truly plug-and-play: roll it into place, power on and play content from USB or your phone — no installation crew, wall drilling or hanging structure needed. Modules, power supplies and receiving cards are quickly replaceable. Every poster is fully aged, calibrated and inspected before export packing.
Specifications are for reference and may be updated without notice. Please confirm final specifications, lead time and pricing with our sales team before ordering.
