P5 960×960mm Outdoor Fixed Installation Iron Cabinet LED Display
P5 960X960mm outdoor fixed-installation LED display with durable iron cabinet, suitable for permanent billboard projects, building façades and long-distance advertising.
- Export packing · shipping quoted per order
- Remote technical support included
- CE, RoHS and FCC documents per project requirements
Supplier
Bluestar Opto Limited · Factory exporter · Shenzhen, China
OEM/ODM · custom cabinet sizes
Full Specifications
| LED SPECIFICATIONS | |
|---|---|
| Color composition - Red | Supplier: HongSheng; Wavelength: 625nm; Viewing angle: 140°/140°; Place of origin: China |
| Color composition - Green | Wavelength: 520nm; Place of origin: China |
| Color composition - Blue | Wavelength: 467nm; Place of origin: China |
| CABINET SPECIFICATIONS | |
| Model | P5 |
| Pixel Pitch | 5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1921 |
| Module Size | 320mm×160mm |
| Module Resolution | 64 pixels x 32 pixels |
| Cabinet Resolution | 192 pixels x 192 pixels |
| Cabinet Size | 960mm×960mm |
| Cabinet Thickness | 80mm |
| Cabinet Material | Hierro |
| Pixel Density | 40000 dots/sqm |
| Brightness | ≥5000CD/m2 |
| Scan Method | 1/8 |
| Optimal Viewing Distance | 15m~5m |
| Maximum Power Consumption | 850W/sqm |
| Average Power Consumption | 350W/sqm |
| Cabinet Weight | 28 kgs |
| Gray Scale | 16 bit |
| Colors | 2.8 trillion |
| Driver IC | FM6373 |
| Refresh Rate | ≥7680Hz |
| Viewing angle | 140°/140° |
| Color Temperature | 6,500K |
| Frame Frequency | ≥60Hz |
| Out-of-control Pixel Rate | <1/10000 |
| MTBF | >5000 hours |
| Life Span | 100,000 hours |
| Control Mode | Synchronous display controlled by PC via DVI |
| Working Voltage | AC 100/240v 50-60Hz |
| Control Distance | Ethernet cable: 100m, multimode optical fiber: 500m, single-mode optical fiber: 20km |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10% to 80% |
| IP Rating | IP65 for outdoor use |
Product Description
The P5 960×960mm Outdoor Fixed Installation Iron Cabinet LED Display is a high-brightness outdoor LED display for permanent advertising installations. The large 960mm×960mm iron cabinet (28 kgs) reduces the number of cabinets per square meter, simplifying steel-structure work and on-site installation.
With ≥5000CD/m2 brightness, IP65 protection and SMD1921 LEDs, the screen stays bright and reliable through sun, rain and dust — ideal for roadside billboards, building façades and commercial plazas running 16–24 hours a day.
The iron cabinet offers a cost-effective solution for large permanent installations without compromising structural strength.
Key Features
- Iron cabinet in 960mm×960mm size — cost-effective and stable for permanent outdoor structures
- ≥5000CD/m2 high brightness — sunlight-readable in full daylight
- IP65 sealed — waterproof and dustproof for year-round outdoor operation
- SMD1921 LEDs with 1/8 scan — energy-efficient with stable, uniform color
- 100,000-hour LED lifespan and MTBF over 5,000 hours for long-term unattended operation
- Flexible mounting — wall-mounted, pole-mounted or rooftop steel structure
- Rear maintenance access for easy servicing
- Low average power consumption (350W/sqm) for economical round-the-clock operation
Applications

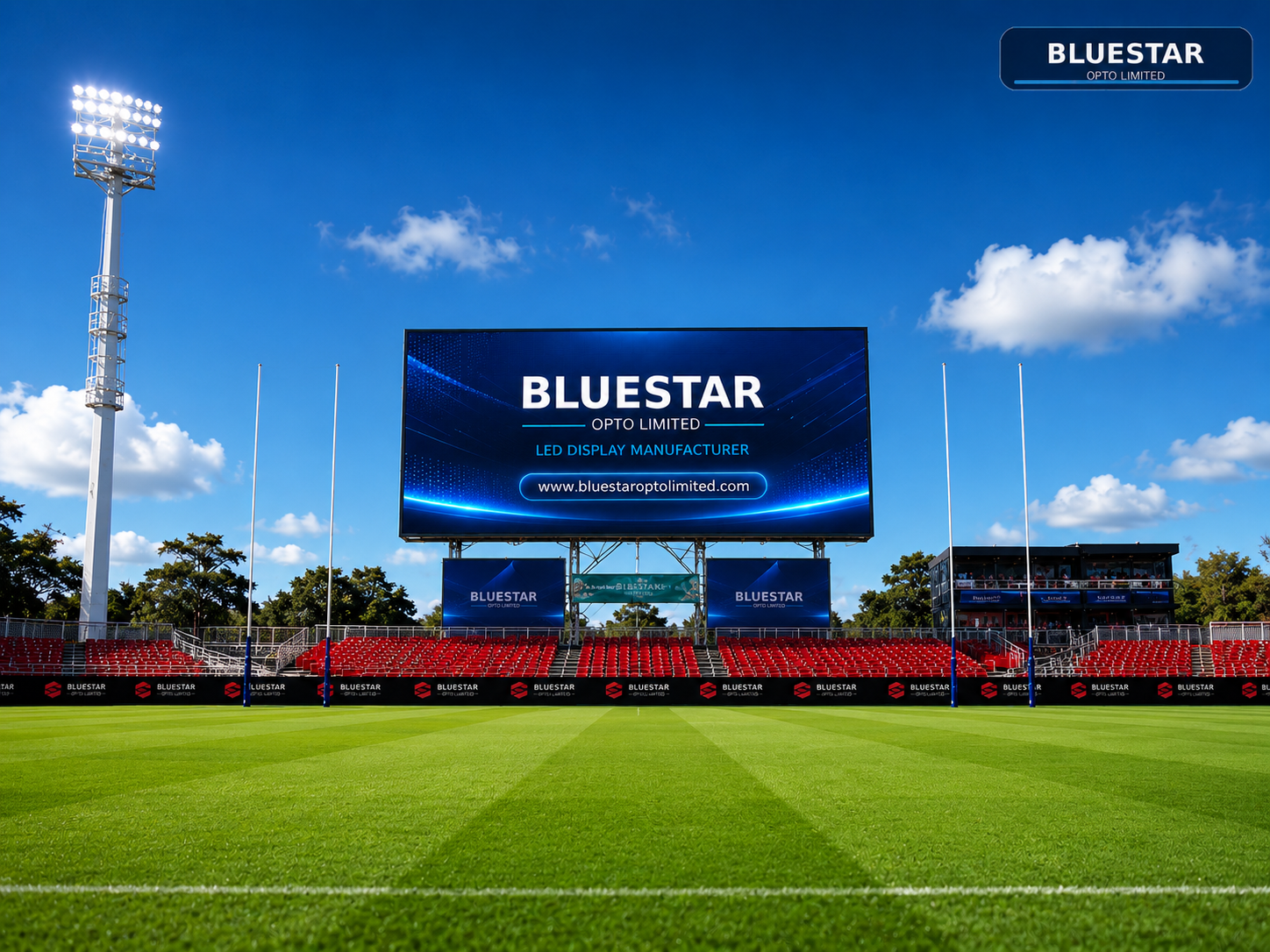

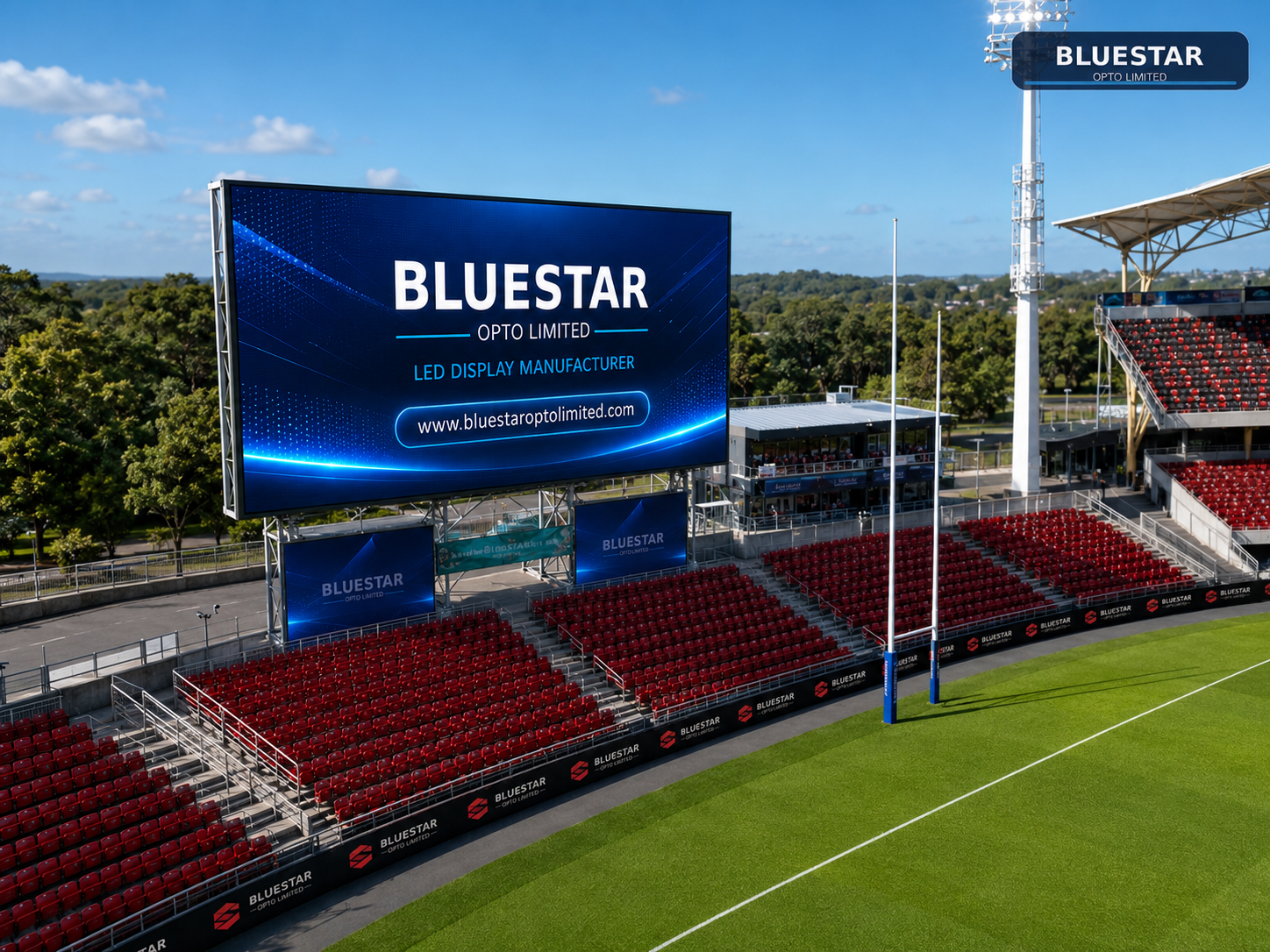

Roadside digital signage and billboards · building façades and curtain walls · commercial plazas and shopping centers · stadiums and transport hubs · gas stations and retail chains
Installation & Service
Designed for permanent installation on wall, pole or rooftop steel structures. Rear maintenance access makes routine service simple. Every cabinet is fully aged, calibrated and inspected before export packing.
Specifications are for reference and may be updated without notice. Please confirm final specifications, lead time and pricing with our sales team before ordering.
