P3.91 500X1000mm Outdoor
P3.91 500X1000mm outdoor LED screen for events, rental stages, commercial advertising and temporary installations, with high refresh performance for live-show visuals.
- Export packing · shipping quoted per order
- Remote technical support included
- CE, RoHS and FCC documents per project requirements
Supplier
Bluestar Opto Limited · Factory exporter · Shenzhen, China
OEM/ODM · custom cabinet sizes
Full Specifications
| LED SPECIFICATIONS | |
|---|---|
| Color composition - Red | Supplier: HongSheng; Wavelength: 625nm; Viewing angle: 140°/140°; Place of origin: China |
| Color composition - Green | Wavelength: 520nm; Place of origin: China |
| Color composition - Blue | Wavelength: 467nm; Place of origin: China |
| CABINET SPECIFICATIONS | |
| Model | P3.91 |
| Pixel Pitch | 3.91mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1921 |
| Module Size | 250mm×250mm |
| Module Resolution | 64 pixels x 64 pixels |
| Cabinet Resolution | 128 pixels x 256 pixels |
| Cabinet Size | 500mm×1000mm |
| Cabinet Thickness | 80mm |
| Cabinet Material | Die-cast aluminum |
| Pixel Density | 65536 dots/sqm |
| Brightness | ≥5000CD/m2 |
| Scan Method | 1/16 |
| Optimal Viewing Distance | 3.9 m~ 12 m |
| Maximum Power Consumption | 850W/sqm |
| Average Power Consumption | 350W/sqm |
| Cabinet Weight | 15 kgs |
| Gray Scale | 16 bit |
| Colors | 2.8 trillion |
| Driver IC | FM6373 |
| Refresh Rate | ≥7680Hz |
| Viewing angle | 140°/140° |
| Color Temperature | 6,500K |
| Frame Frequency | ≥60Hz |
| Out-of-control Pixel Rate | <1/10000 |
| MTBF | >5000 hours |
| Life Span | 100,000 hours |
| Control Mode | Synchronous display controlled by PC via DVI |
| Working Voltage | AC 100/240v 50-60Hz |
| Control Distance | Ethernet cable: 100m, multimode optical fiber: 500m, single-mode optical fiber: 20km |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10% to 80% |
| IP Rating | IP65 for outdoor uses |
Product Description

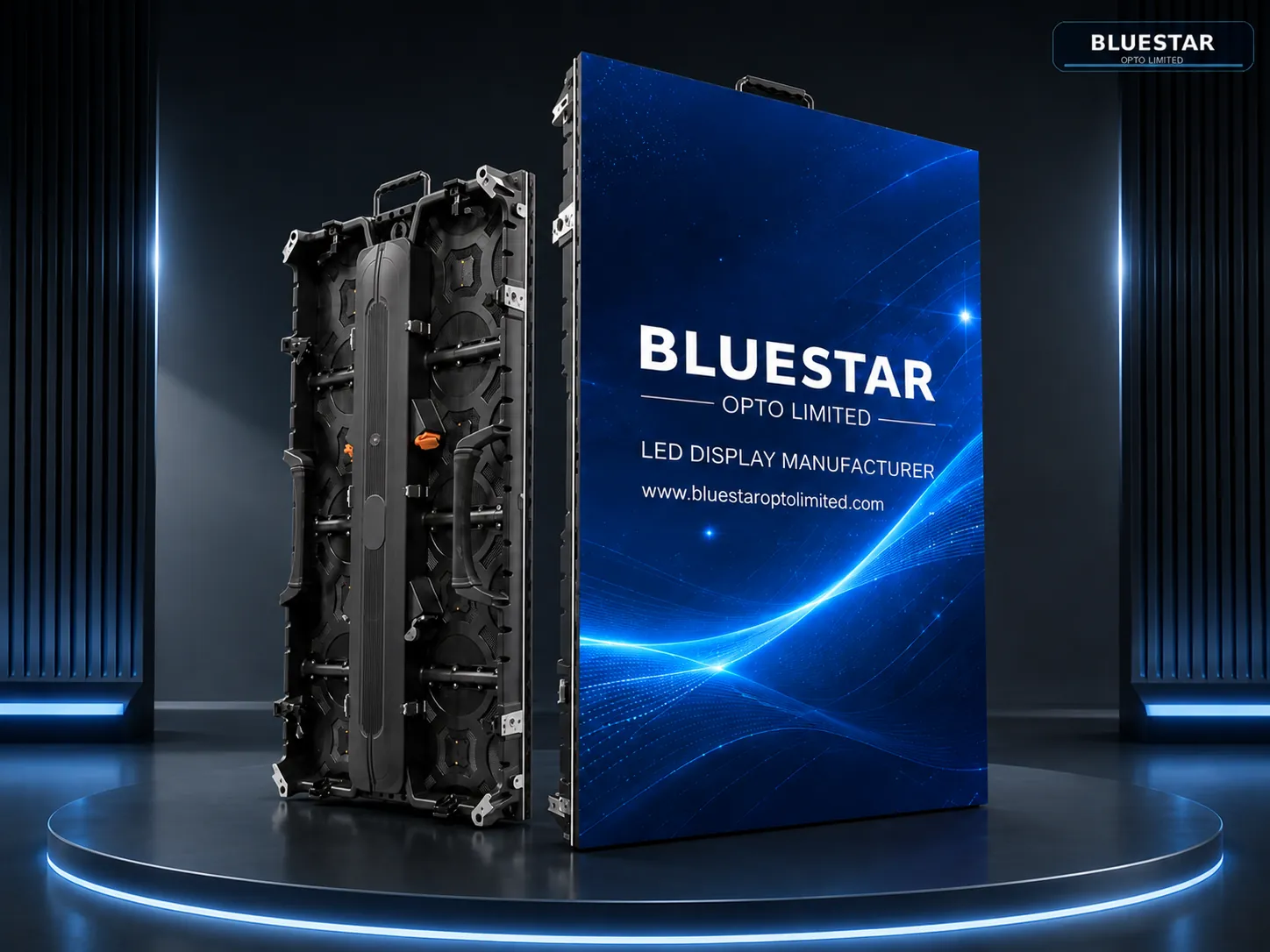

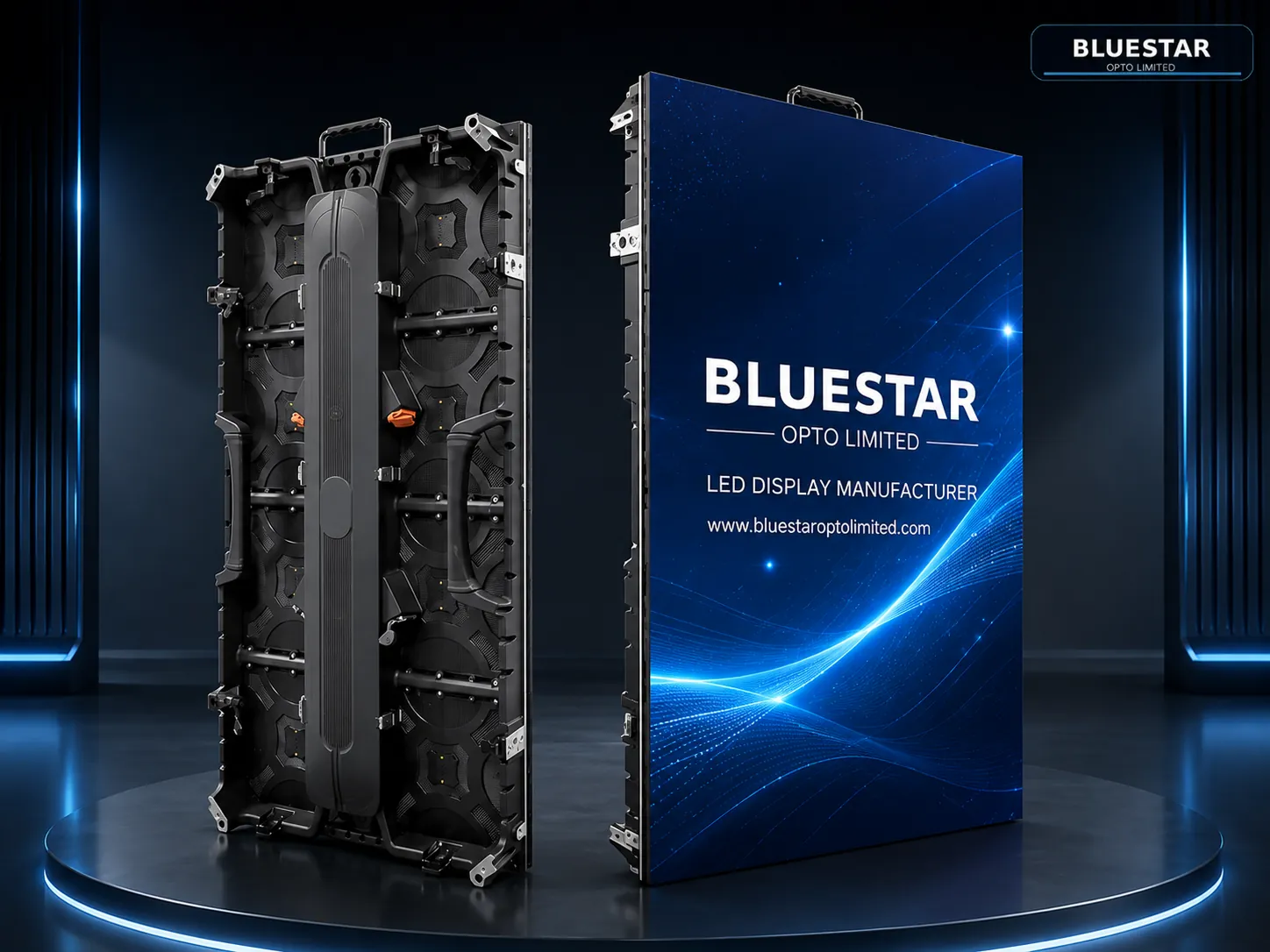

The P3.91 500X1000mm Outdoor is a professional outdoor rental LED display built for open-air events and mobile advertising. The 500mm×1000mm die-cast aluminum cabinet is IP65 sealed against rain and dust, while ≥5000CD/m2 high brightness keeps content vivid and readable even in direct sunlight.
A 3.91mm pixel pitch with SMD1921 LEDs and ≥7680Hz refresh rate delivers sharp, flicker-free visuals at an optimal viewing distance of 3.9 m~ 12 m. The light 15 kgs cabinet and quick-lock system let crews build large outdoor walls fast — then pack them into flight cases and move on to the next venue.
Key Features
- IP65 waterproof and dustproof — engineered for rain, dust and all-weather outdoor use
- ≥5000CD/m2 high brightness — sunlight-readable for daytime events and roadside audiences
- Die-cast aluminum cabinet — only 15 kgs; strong, light and precisely flat for seamless walls
- Quick-lock design — fast assembly and teardown for touring and temporary installations
- ≥7680Hz high refresh rate — flicker-free on camera for live broadcast and IMAG
- SMD1921 LEDs with 1/16 scan — high contrast and stable color in changing outdoor light
- Hanging, stacking or wall-mounted installation; flight cases and spare parts available per project
- Large 500×1000mm panel — fewer cabinets per square meter for faster, more cost-effective installation
Applications
Outdoor concerts and festivals · sports events and fan zones · commercial roadshows · outdoor advertising and DOOH · public events and ceremonies · outdoor exhibition areas
Installation & Service
Cabinets connect via fast locks and support hanging or ground-support setups. Modules, power supplies and receiving cards are quickly replaceable on site. Every cabinet is fully aged, calibrated and inspected before export packing.
Specifications are for reference and may be updated without notice. Please confirm final specifications, lead time and pricing with our sales team before ordering.
