P2.9 500X1000mm Indoor
P2.9 500X1000mm indoor LED video wall offering a good balance of clarity and cost for shopping malls, brand displays, meeting rooms and commercial interiors.
- Export packing · shipping quoted per order
- Remote technical support included
- CE, RoHS and FCC documents per project requirements
Supplier
Bluestar Opto Limited · Factory exporter · Shenzhen, China
OEM/ODM · custom cabinet sizes
Full Specifications
| LED SPECIFICATIONS | |
|---|---|
| Color composition - Red | Supplier: HongSheng; Wavelength: 625nm; Viewing angle: 140°/140°; Place of origin: China |
| Color composition - Green | Wavelength: 520nm; Place of origin: China |
| Color composition - Blue | Wavelength: 467nm; Place of origin: China |
| CABINET SPECIFICATIONS | |
| Model | P2.976 |
| Pixel Pitch | 2.976mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD1515 |
| Module Size | 250mm×250mm |
| Module Resolution | 84 pixels x 84 pixels |
| Cabinet Resolution | 168 pixels x 336 pixels |
| Cabinet Size | 500mm×1000mm |
| Cabinet Thickness | 80mm |
| Cabinet Material | Die-cast aluminum |
| Pixel Density | 112896 dots/sqm |
| Brightness | ≥1000CD/m2 |
| Scan Method | 1/28 |
| Optimal Viewing Distance | 2.9 m~ 9 m |
| Maximum Power Consumption | 850W/sqm |
| Average Power Consumption | 350W/sqm |
| Cabinet Weight | 15 kgs |
| Gray Scale | 16 bit |
| Colors | 2.8 trillion |
| Driver IC | FM6373 |
| Refresh Rate | ≥7680Hz |
| Viewing angle | 140°/140° |
| Color Temperature | 6,500K |
| Frame Frequency | ≥60Hz |
| Out-of-control Pixel Rate | <1/10000 |
| MTBF | >5000 hours |
| Life Span | 100,000 hours |
| Control Mode | Synchronous display controlled by PC via DVI |
| Working Voltage | AC 100/240v 50-60Hz |
| Control Distance | Ethernet cable: 100m, multimode optical fiber: 500m, single-mode optical fiber: 20km |
| Operating Temperature | -20 to +60 |
| Operating Humidity | 10% to 80% |
| IP Rating | IP45 for indoor use |
Product Description

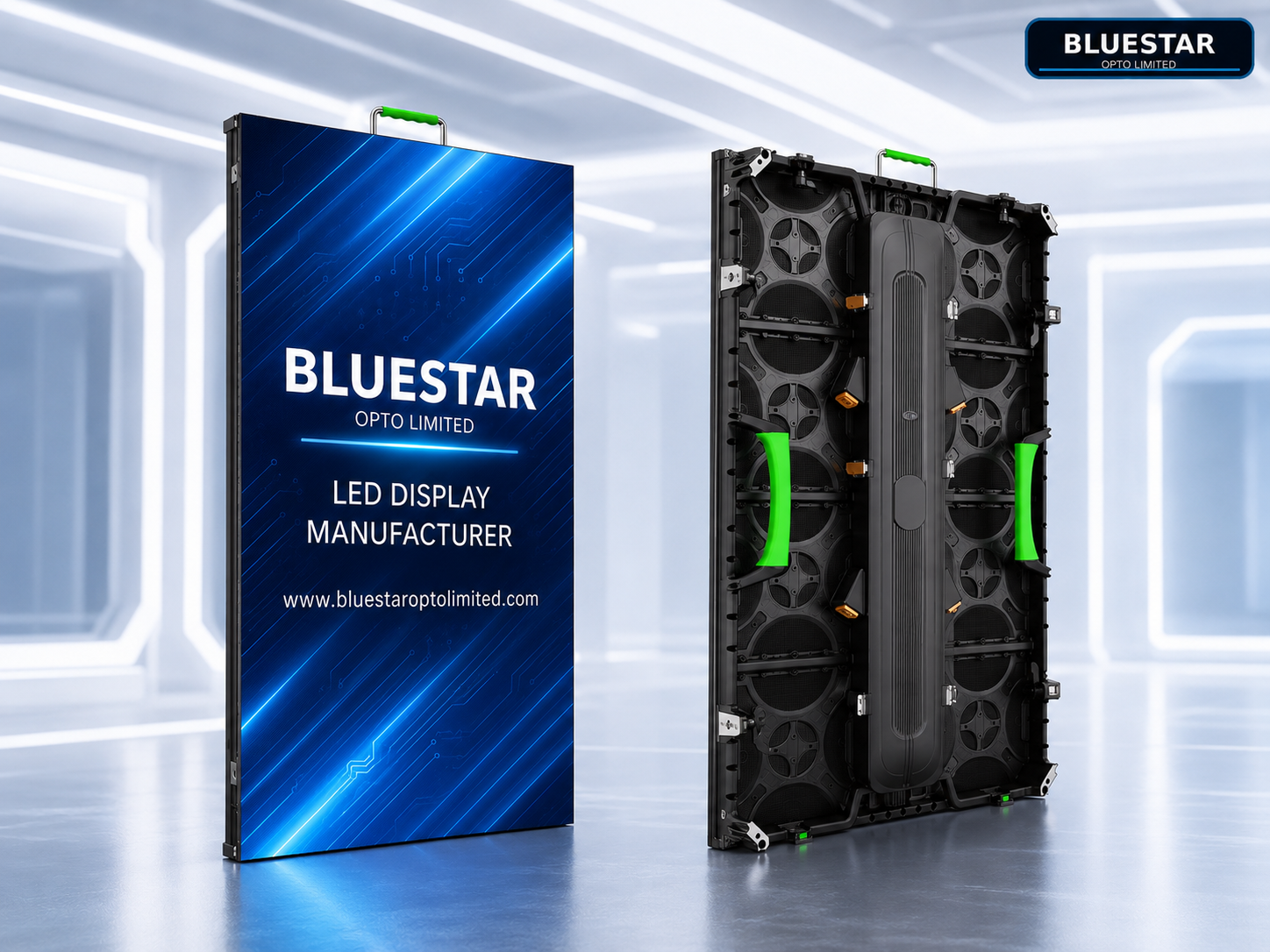

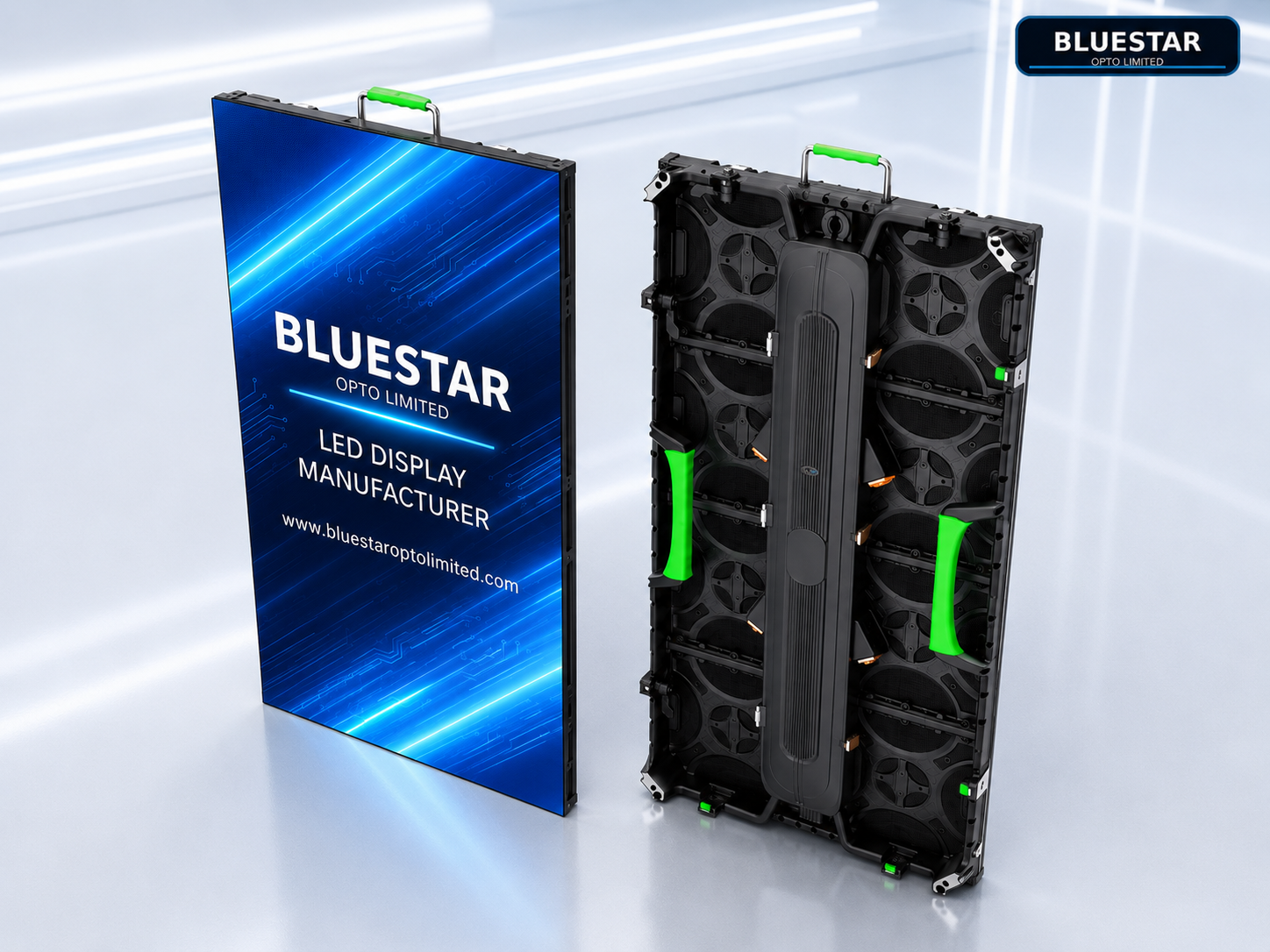

The P2.9 500X1000mm Indoor is a professional indoor rental LED display engineered for the staging and live-events market. The 500mm×1000mm die-cast aluminum cabinet weighs only 15 kgs, combining light weight with high structural strength and excellent flatness — so large video walls go up fast and the seams stay invisible.
With a 2.976mm pixel pitch, SMD1515 LEDs, ≥7680Hz refresh rate and ≥1000CD/m2 brightness, the screen delivers sharp, vivid, flicker-free images that stay clean on camera — essential for concerts, broadcasts and corporate shows where the LED wall is part of the production.
Key Features
- Die-cast aluminum cabinet — only 15 kgs per cabinet; precision seams with no light leakage for a perfectly flat video wall
- Quick-lock design — cabinets lock together in seconds for fast setup and teardown, even with a small crew
- ≥7680Hz high refresh rate — no flicker or scan lines on camera; ready for broadcast and live streaming
- SMD1515 LEDs with 1/28 scan — deep contrast, vivid color and smooth grayscale at ≥1000CD/m2 brightness
- 140°/140° wide viewing angle — consistent picture quality from every seat in the venue
- Low power draw — 350W/sqm average consumption keeps the venue cool and operating costs down
- Hanging or stacking installation; standard rental accessories (hanging bars, flight cases) available per project
Applications
Concerts and music festivals · exhibitions and trade shows · weddings and corporate events · stage backdrops and DJ booths · TV studios and live streaming · shopping-mall promotions · conferences and banquet halls
Installation & Service
Cabinets connect via fast locks and support both hanging and ground-stacked setups. Modules, power supplies and receiving cards are quickly replaceable to keep the show running. Every cabinet is fully aged, calibrated and inspected before export packing.
Specifications are for reference and may be updated without notice. Please confirm final specifications, lead time and pricing with our sales team before ordering.
